Should you use the USD and USDZ 3D file formats?

If you're wondering whether you should use the USD, USDZ and USDA 3D file formats, the answer is that it depends on what you're using it for. There are pros and cons to consider.

Ben Houston's Ultimate Guide to 3D File Formats
Part 1: glTF Part 2:  USD/USDZ Part 3:  FBX 3D Part 4: OBJ 3D Part 5:   STEP Part 6: glTF v. FBX 3D



Overview

The USD, USDZ and USDA 3D file formats are three different names for a format designed by Pixar Animation for the transfer of rich 3D models and scenes.



USD and USDZ 3D File Formats

The USD acronym stands for Universal Scene Description. While the USDZ extension variation just means that it is a zip-compressed USD file, hence the Z in the name. The less popular USDA extension variation means that it is a human readable text format, whereas the main USD and USDZ variations are binary encoded.

USD was originally designed to be used by professionals in the visual effects and computer animation industry for transferring around 3D scene information between different software tools. It wasn’t until Apple decided to adopt USDZ as its primary file format for all things 3D that USD became popular with everyday users.



Learn More about Threekit's 3D Platform



As mentioned, Apple has adopted the USDZ 3D file format for packaging real-time 3D content for those developing iOS applications with 3D effects, and also web-based Quicklook AR experiences.

Alternative popular 3D model and scene file formats are The Khronos Group glTF 3D format, the Autodesk FBX 3D file format, and the Wavefront 3D object file format.



Pros

Wide Feature Support

The USD and USDZ formats, like the FBX file format, supports a rich and wide set of features. USD and USDZ supports 3D models, scene hierarchy, materials, lighting, animations, bones, skinning, and blend shapes. If you have data in a 3D editor that you want to transfer to another tool, it is very likely that USE and USDZ (if supported by your application) will be able to transfer that data accurately and easily.

usdz for pixar studios

Modern Features

The most unique strength of the USD file format in comparison to all other 3D interchange formats is that its supported features are very modern. Pixar Animation is the leading 3D animation studio, and its design for USD is nearly perfect for its needs. USD supports the latest physically-based material and lighting definitions. It also does not have legacy baggage of features that used to be popular decades ago but generally are not used today, like FBX’s support for NURBS surfaces

Separate Position, UV and Normal Topologies

A strength of the USD and USDZ 3D file formats is that they enable the storage of position, UV, and normal data that have different topology. This is great for high-quality modeling tools, and enables complex features like accurate subdivision surfaces.

Fast

The USD file format, because it utilizes an efficient binary encoding, is fast to write and read. This is because when you store data as binary, it is faster to write and read it, as opposed to a text-based format that must convert binary data to and from human readable numbers. It is also efficient in terms of space, because binary representations of numbers take up less space than human-readable numbers. Binary formats can often be complex if you need to read and write to them directly, but the USD SDK hides this completely from the user of the USD SDK.



Check out these 3D demos.



Cons

Poor Compatibility

It is quite likely that inside of Pixar Animation Studios, USD files are perfectly compatible between their various internal tool sets. Unfortunately, outside of Pixar Animation, the world isn’t so perfect.

In particular, the most common software that supports USDZ outside of the Pixar studios belongs to Apple. Unfortunately, the Apple implementation of USDZ’s feature is very partial with a large set of undocumented limitations.

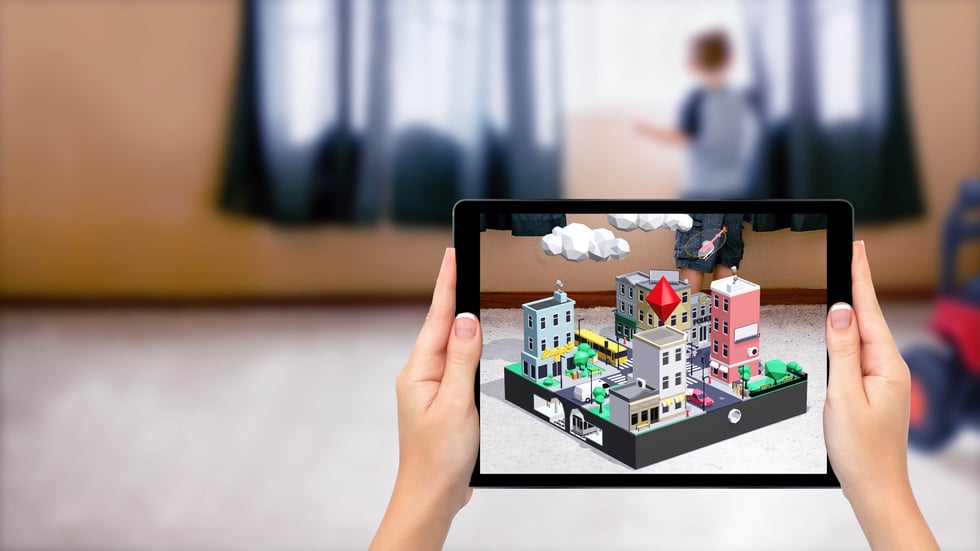

Apple AR kit USDZ



This means that a standard USD or USDZ file exported according to the official specifications will not load into Apple software, or if it does, it likely will look incorrect, especially with regards to materials. As such, it's crucial to know that the consumer of the USDZ file is an Apple device and thus exports within the limitations of Apple’s software.

Large File Sizes

USD and USDZ was designed by Pixar Animation for use on its award-winning 3D animation films. Pixar Animation’s studios and software are designed around the need to transfer large files to support their incredibly rich visuals. Pixar is not a games company, nor a company that needs to transfer data quickly and efficiently to remote locations. USD is thus designed for this environment, as it favors rich visuals over the various space-saving techniques that other 3D formats, such as glTF, employ.

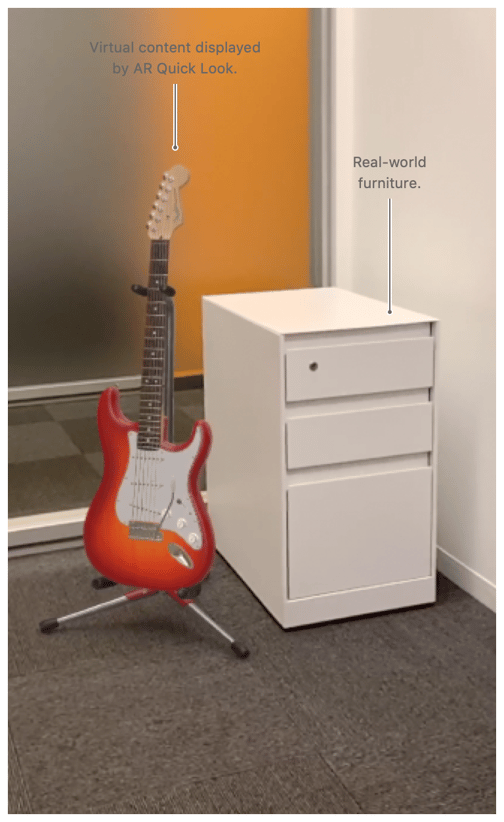

virtual guitar next to drawers

Specifically, USDZ does not employ 3D geometry-specific compression algorithms; therefore, it loses out on the compression ratios that glTF can achieve with DRACO compression. USDZ does not allow for the efficient texture channel packing that glTF utilizes, which significantly increases texture efficiency.

Interestingly, even though the USDZ file uses a zip file container to bring together all of its component files into one package, it does not allow currently for the zip compression feature to actually be enabled to make the file size smaller.

The end result is that USD files will generally be larger, sometimes much larger, than equivalent glTF files.



Summary

If you work in film production, especially computer animation film production, and your toolset supports USDZ, using USDZ as a means of transferring data is a great choice.

If you need to transfer data to software that will run on Apple devices or utilize Apple’s web-based Quicklook AR functionality, using USDZ is also your best choice, but be careful with Apple’s significant incompatibilities with the official USD specification.

For most other applications, USDZ is not really the best file format choice–usually, glTF or FBX are more appropriate.
